LX12025P Enclosed High Power Metal Sheet Plate Fiber Laser Cutting Machine Stainless Steel Carbon Steel Iron
LX12025P (1)

Brand New Cast Aluminum Beam

It is manufactured with aerospace standards and formed by 4300 tons press extrusion molding. After aging treatment, its strength can reach 6061 T6 which is the strongest strength of all gantries. Aviation aluminum has many advantages, such as good toughness, light weight, corrosion resistance, anti-oxidation, low density, and greatly increase the processing speed.

The Segmented Rectangle laser Tube Welded Bed

The internal structure of the bed adopts the aircraft metal honeycomb structure, which is welded by a number of rectangular tubes. Stiffeners are arranged inside the tubes to increase the strength and tensile strength of the bed, it also increases the resistance and stability of the guide rail so as to effectively avoid the deformation of the bed.

LX12025P (2)
LX12025P (3)

Auto Focus Cutting Head Precitec

• motorized focus position adjustment for automatic machine setup and piercing work

• lightweight and slim design created for fast acceleration and cutting speed

• drift-free, fast-reacting distance measurement

• permanent protective window monitoring

• automated piercing with PierceTec

• water cooling of the sheet metal with CoolTec

• completely dustproof beam path with protective windows

• LED operating status display

• output of all sensor data via WLAN to APP and machine control possible

• pressure monitoring in the nozzle area (gas cutting) and in the head

BOCHU SYSTEM

Easyto operate evenby green hands, Match with 20000 process data on its graphical programming interface, Compatible with multile graphic files, incl. DXF DWG, PLT and NC code, Improve stock layout and material utilization by 20% and 9.5% by its built-in nesting software, with no limit of quantity of spare parts, Support language: English, Spanish, Portuguese, Russian, German, French, Italian, Japanese, Korean, Dutch, Czech, Simplified Chinese, traditional Chinese.
●New man-machine interaction pattern
●Flexible/batch processingmode
●Uitra-high-speed scanning & ctting with micro-connection
●Real-ime monitoring of core components
●Active reminder of machine maintenance
●Bult-in nesting software, save labor force

LX12025P (4)
LX12025P (5)

Safety and Environment Protection

· With a fully enclosed design;

· The observation window adopts an European CE Standard laser protective glass;

· The smoke produced by cutting can be filtrated inside, it's non-polluting and environmentally friendly;

Monitoring system

Real-time observe the machine running through the panel

LX12025P (6)
LX12025P (7)

Transmission And Precision

LXSHOW fiber laser cutting machine is equipped with German Atlanta rack, Japanese Yaskawa motor and Taiwan Hiwin Rails. The positioning accuracy of the machine tool can be 0.02mm and the cutting acceleration is 1.5G. The working life is up to more than 15 years.

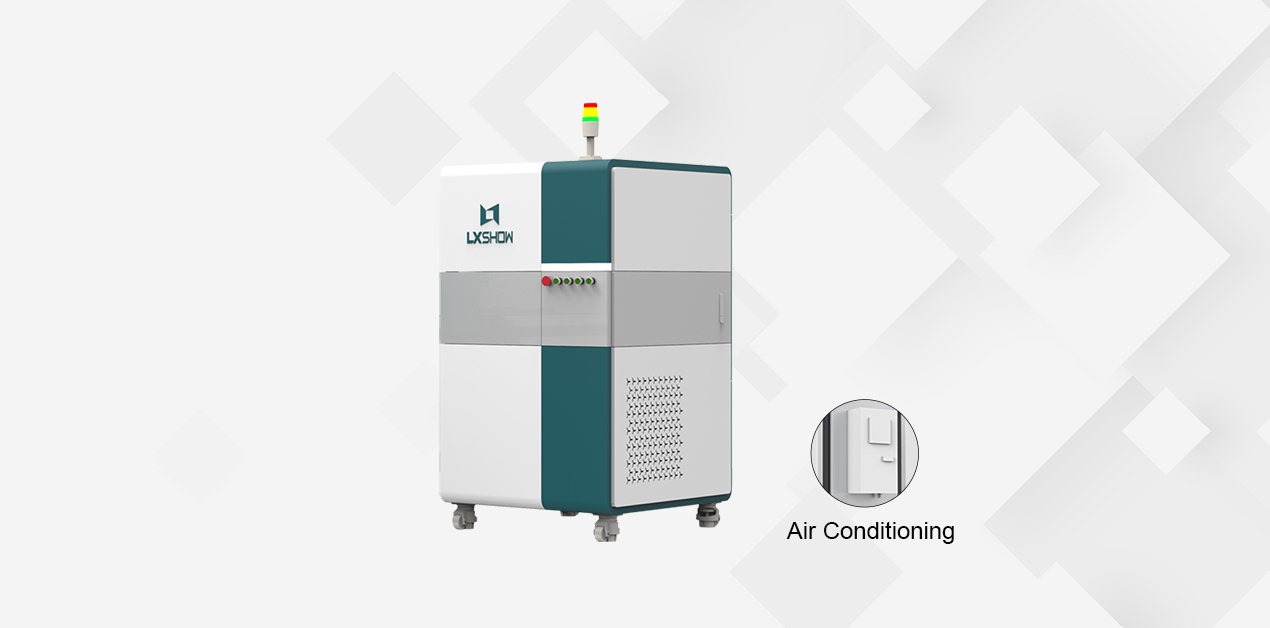

Independent Control Cabinet

Dust-proof
All electrical components and laser source are built-in to the independent control cabinet with a dust-proof design to prolong the lifespan of the electrical components.
Automatic Thermostat
The control cabinet is equipped with air conditioner for automatic constant temperature.This can prevent excessive temperature damage to components in summer.

LX12025P (8)

Model Number:LX12025P
Lead time:20-40 working days
Payment Term:T/T;Alibaba trade assurance;West Union;Paypal;L/C.

Brand:LXSHOW
Warranty:3 years
Shipping:By sea/By land

Machine Model

LX12025P

Power of Generator

1000W--30000W

Dimension

27460*4160*2384

Working Area

2550*10150mm

Repeated Positioning Accuracy

±0.02mm

Max Running Speed

160m/min

Max Acceleration

2G

Specified Voltage And Frequency

380V   50/60HZ

LX12025P Enclosed High Power Metal Sheet Plate Fiber Laser Cutting Machine Application

Application Materials:

Fiber Laser Metal Cutting Machine is suitable for metal cutting like Stainless Steel Sheet, Mild Steel Plate, Carbon Steel Sheet, Alloy Steel Plate, Spring steel Sheet, Iron Plate, Galvanized Iron, Galvanized Sheet, Aluminum Plate, Copper Sheet, Brass Sheet, Bronze Plate, Gold Plate, Silver Plate, Titanium Plate, Metal Sheet, Metal Plate, etc.

Application Industries:

Fiber Laser Cutting Machines are widely used in manufacture Billboard, Advertising, Signs, Signage, Metal Letters, LED Letters, Kitchen Ware, Advertising Letters, Sheet Metal Processing, Metals Components and Parts, Ironware, Chassis, Racks & Cabinets Processing, Metal crafts, metal art ware, elevator panel cutting, hardware, auto parts, Glasses Frame, Electronic Parts, Nameplates, etc.
