Work roll（45#steel）
The up and down roll movement of the work roll completes the coiling action.
Screw
• The screw height adjustment mechanism is a mechanism that can adjust the height through a screw.
• The mechanism is composed of a screw and a nut. By rotating the screw, the nut is driven to move up and down, so as to realize the height adjustment of the working surface such as the workbench.
Electrical components
• Electrical components are famous Siemens brands, which is popular in market.
• Stable work ability.
Lifting worm assembly
Lifting freely, flexible operation performance
Rolling machine hydraulic system
Stand-alone system,easy maintenance(For hydraulic plate rolling machines)
Brand:Japan NOK
Main motor
Easy installation, easy adjustment, excellent performance, complete solutions.
Reducer
The lowest backlash.
The maximum output torque.
The highest torsion rigidity.
High efficiency high quality low noise, lift time lubrication.
High precision, long life.
Hydraulic pump

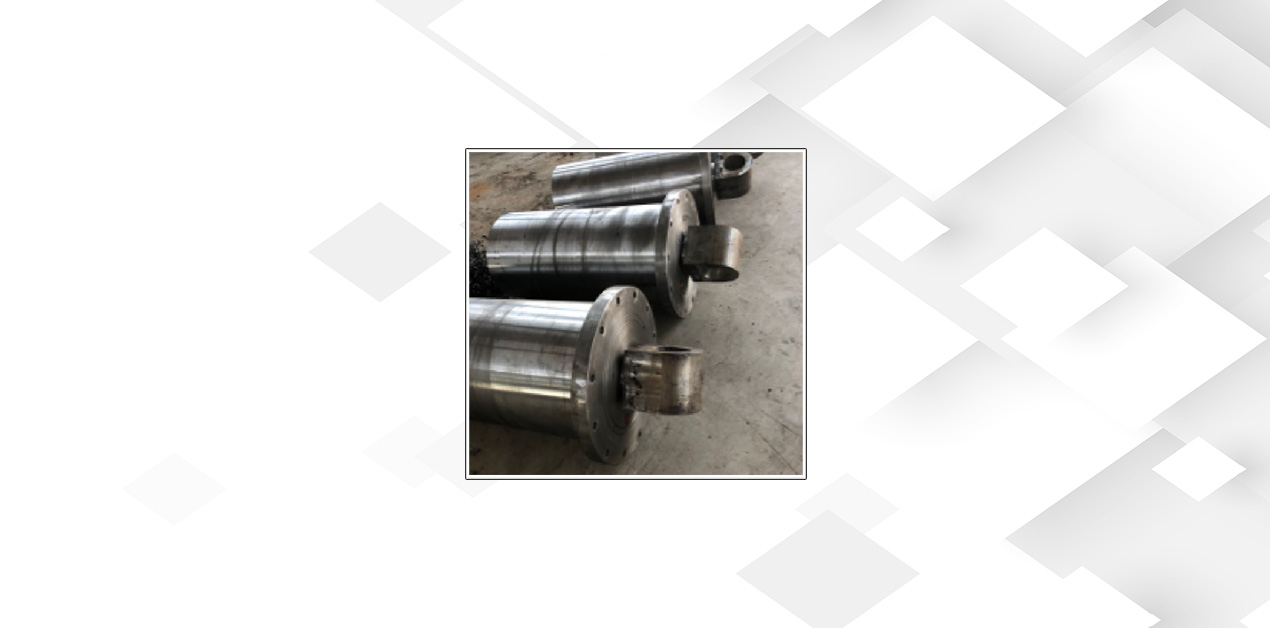

Cylinder
3 roller bending machine parameters
Model number: W11-16×2500
Leading time:15-20 work days
Payment Term: T/T;Alibaba trade assurance;West Union;Payple;L/C
Brand: LXSHOW
Warranty: 3 years
Shipping: By sea/By land
| Specifications | W11-16×2500 |
| Structure type | Symmetrical upward adjustment three-roll plate bending machine |
| Work roll material | Solid round 45#steel
(high frequency quenching treatment) |
| Maximum width | 2500mm |
| Roller working length | 2550mm |
| Maximum Coil Thickness | 16 mm |
| Plate Yield Limit | 245Mpa |
| Upper roll diameter | 250mm (45# steel, surface heat treatment) |
| Bottom roll diameter | 200mm (45# steel, surface heat treatment) |
| Main motor power | 15kW |
| Reducer | JZQ400 |
| Lift motor power | 5.5kW |
| Auxiliary reducer | JZQ250 |
| Dimensions | 4.15×1.50×1.45m |
Symmetrical Three-roll Plate Rolling Machine consumable parts
1.Turbine shaft: using life more than 3 years
2.Wear-resistant sleeve for shaft head:using life about 3 years
Symmetrical 3 roller bending machine diagram
Applicable materials
Carbon steel, stainless steel, aluminum, copper, high carbon steel and other metals.
Application industry
As a mature mechanical processing equipment, the plate rolling machine has been widely used in steel, construction, shipbuilding, automobile manufacturing, machinery manufacturing, power equipment manufacturing, pressure vessels, energy industry, and even aerospace and other fields.
Plate rolling machine sample display
LXSHOW Factory display
