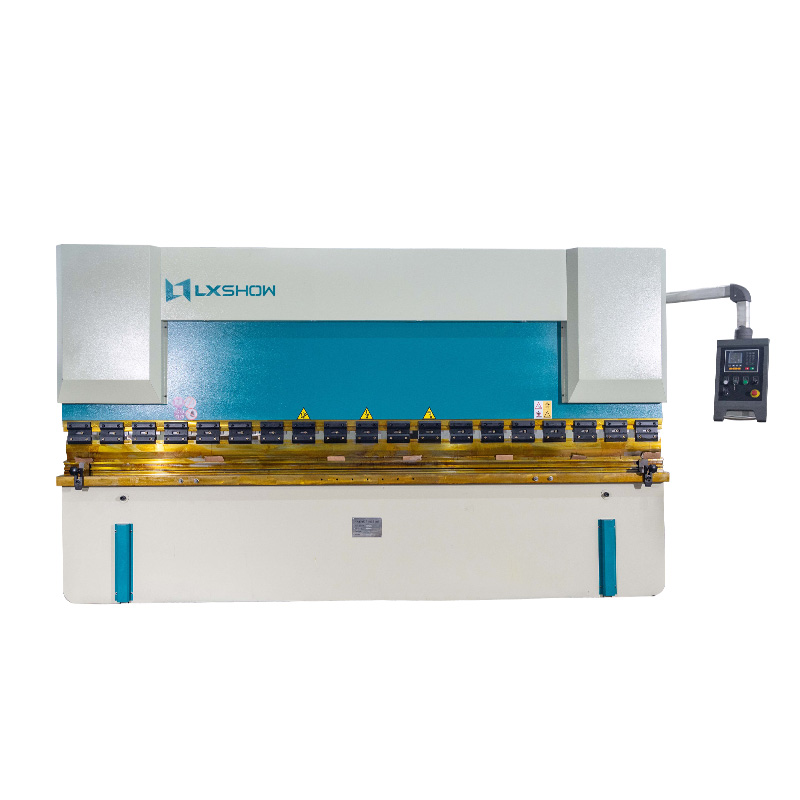

WC67K-125T4000 Cheapest CNC Bending Machine Sold at Cost Price

WC67K-125T4000

WC67K-125T4000

WC67K-125T4000 Cheapest CNC Bending Machine Sold at Cost Price

WC67K-125T4000

WC67K-125T4000 Cheapest CNC Bending Machine Sold at Cost Price

WC67K-125T4000

1. The sliding block adopts the torsional shaft synchronization mechanism, and the two ends of the torsional shaft are installed with high precision taper centering bearing (K type), and the left end is equipped with eccentric adjusting mechanism, making the sliding block synchronous adjustment convenient and reliable.

2. The use of upper die deflection compensation mechanism, through adjustment can make the upper die mouth on the full length of the machine to obtain a specific curve, to compensate for the mechanical loading table and slide produced by the deflection, improve the workpiece bending accuracy.

3. In the Angle adjustment, the worm gear reducer drives the formation of the movement of the mechanical block in the cylinder, and the value of the cylinder position is displayed by the travel counter.

4. The upper and lower adjusting mechanism is arranged at the fixed place of the workbench and the wall panel, which makes the adjustment convenient and reliable when the bending Angle is slightly different.

5. The column right side is equipped with remote pressure regulating valve, so that the size of the system pressure adjustment, convenient and reliable.

Main Technical Parameters

No.	name		parameter	Unit
1	Nominal Pressure		1250	KN
2	Length of Table		4000	mm
3	Distance between Housings		3160	mm
4	Throat Depth		330	mm
5	Ram stroke		150	mm
6	Open MAX Height		400	mm
7	Overall Dimensions	L	4100mm	mm
		W	1600mm	mm
		H	2600mm	mm
8	Main motor power		7.5	Kw
9	Machine weight		8	Tons
10	Voltage		220/380/420/660	V

Main specification

Model	Weight (t)	Cylinder Diameter (mm)	Stroke (mm)	Wallboard (mm)	Slider (mm)	Bench Riser (mm)
WC67K-30T1600	1.4	95	80	18	20	20
WC67K-40T2200	2.1	110	100	25	30	25
WC67K-40T2500	2.3	110	100	25	30	25
WC67K-63T2500	3.6	140	120	30	35	35
WC67K-63T3200	4	140	120	30	35	40
WC67K-80T2500	4	160	120	35	40	40
WC67K-80T3200	5	160	120	35	40	40
WC67K-80T4000	6	160	120	35	40	45
WC67K-100T2500	5	180	140	40	50	50
WC67K-100T3200	6	180	140	40	50	50
WC67K-100T4000	7.8	180	140	40	50	60
WC67K-125T3200	7	190	140	45	50	50
WC67K-125T4000	8	190	140	45	50	60
WC67K-160T3200	8	210	190	50	60	60
WC67K-160T4000	9	210	190	50	60	60
WC67K-200T3200	11	240	190	60	70	70
WC67K-200T4000	13	240	190	60	70	70
WC67K-200T5000	15	240	190	60	70	70
WC67K-200T6000	17	240	190	70	80	80
WC67K-250T4000	14	280	250	70	70	70
WC67K-250T5000	16	280	250	70	70	70
WC67K-250T6000	19	280	250	70	70	80
WC67K-300T4000	15	300	250	70	80	90
WC67K-300T5000	17.5	300	250	70	80	90
WC67K-300T6000	25	300	250	80	90	90
WC67K-400T4000	21	350	250	80	90	90
WC67K-400T6000	31	350	250	90	100	100
WC67K-500T4000	26	380	300
WC67K-500T6000	40	380	300

Product Details

Control System:Estun E21

1 Easy to operate: This system has multi-step programming, can be changed at any time different sizes.

2 Manual function: Convenient debugging and installation, with manual mode to adjust the required size.

Front Bracket
Placed on the side of the table, fixed by screws. It can be used as support when bending wide and long plates.

Back Barrier
The rear stopper mechanism with T-type lead screw matching rod is driven by motor. Positioning stop refers to the aluminum alloy beam can easily move around and bend the workpiece at will.

Electrical Machinery
High quality, innovation,efficiency

Foot switch
Control the start and stop of the bending machine to achieve precise control of the bending process

Sample Show & Industry

Packaging

Factory

Our Service

Customer Visit

Off-line Activity

FAQ

Q: Do you have CE document and other documents for customs clearance?
A: Yes, we have CE, Provide you with a one-stop service.
At first we will show you and and after shipment we will give you CE/Packing list/Commercial Invoice/ Sales contract for customs clearance.

Q: If we are interested in your machine, how do we choose?
A:Could you tell me your materials:cs or ss and their thickness? And the biggest bending width? Then i will confirm the machine model for you.

Q: How about warranty?

A: 3 years quality guaranty, the machine with main parts(excluding the consumables) shall be

changed free of charge(some parts will be maintained) when if any problem during the warranty period.

Q: Do you have after sales support?

A: Yes, we are happy to give advice and we also have skilled technicians available across the world, We need your machines running in order to keep your business running.

Q: Do you have any other machine style?

A: Yes, please check the following machine style, if you have any questions, you can contact us any time, 24x7, we always here.

As a leader in laser smart equipment

We focused on providing great technical support and we have one professional laser cutting machine, laser welding and laser cleaning machine communication Center. we will build our industry 4.0 and future plants, helping companies to build smart manufacturing and enabling smart manufacturing .

All machines ,passed the European Union CE authentication, American FDA certificate and are certified to ISO 9001.

Products are sold to USA, Canada, Australia, Europe, South east Asia, Africa etc, more than 120 countries and areas, and supply OEM service for more than 30 manufactures.

Helping World Metal Cutting >>>

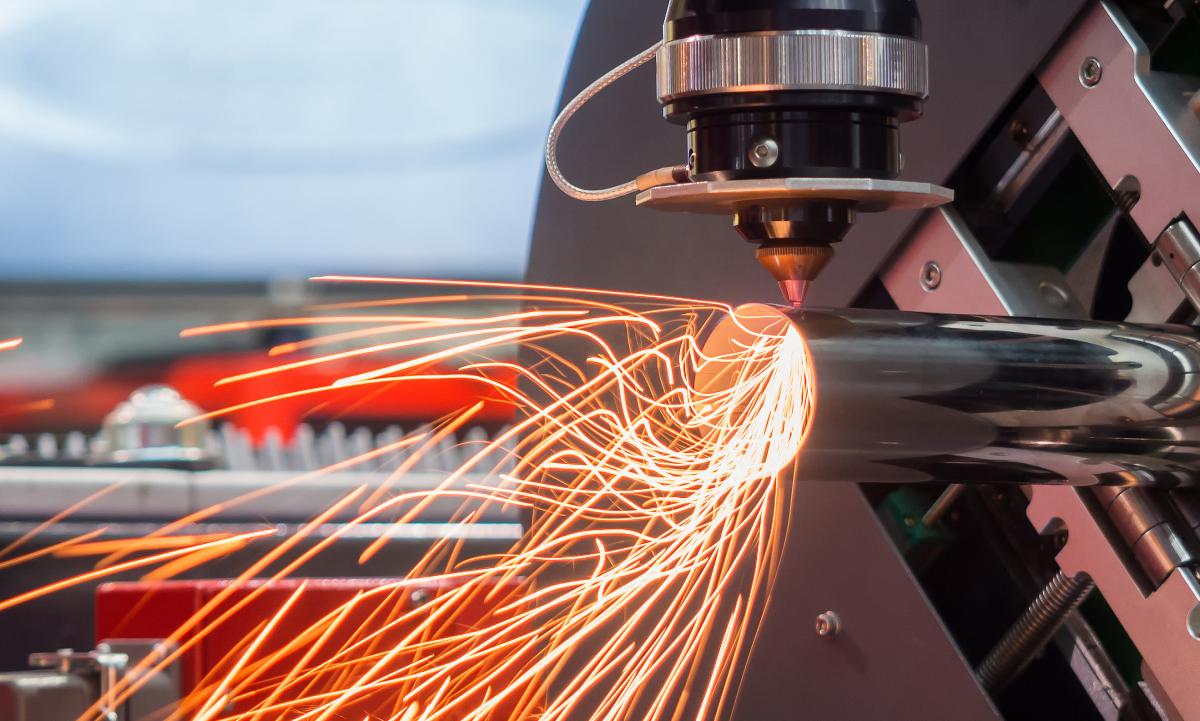

High precision CNC laser cutting metal sheet and metal pipe
