It adopts an pneumatic clamp design on both sides and it can modulate the center automatically.The diagonal adjustable range is 20-220mm(320/350 is optional)

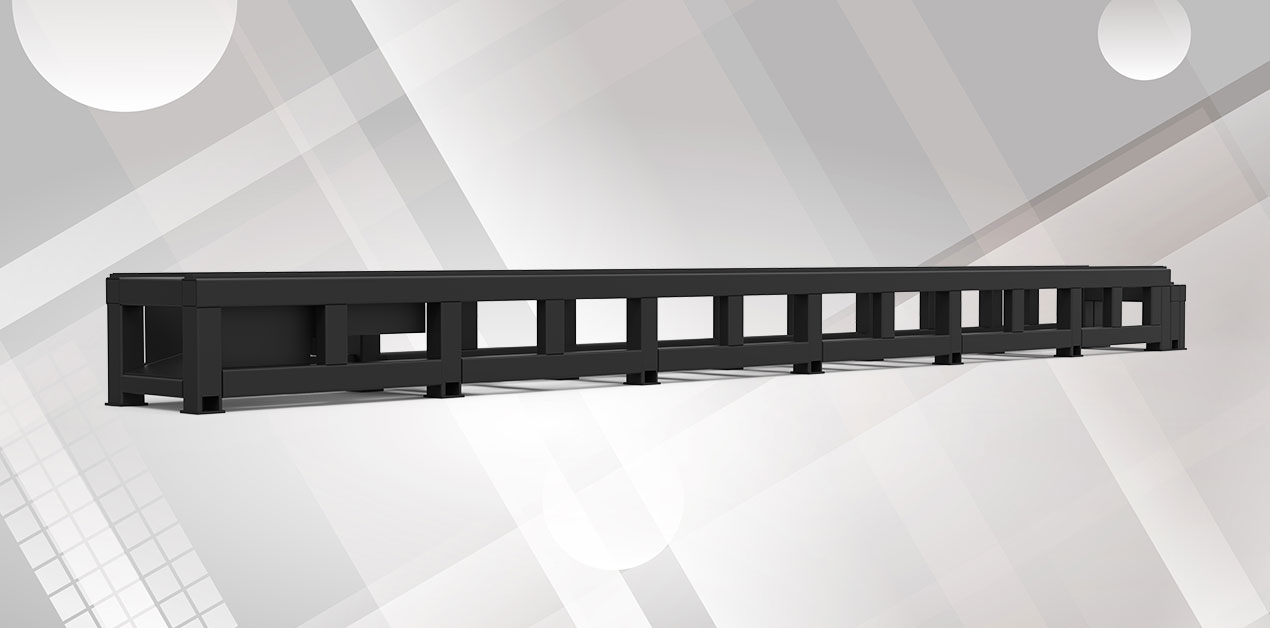

The bed adopts an integral welding structure, rough machining after annealing, and then vibration aging treatment, which can completely eliminate the stress of welding and processing, with good rigidity, high precision, and can maintain long-term use without deformation.
Easyto operate evenby green hands, Match with 20000 process data on its graphical programming interface, Compatible with multile graphic files, incl. DXF DWG, PLT and NC code, Improve stock layout and material utilization by 20% and 9.5% by its built-in nesting software, with no limit of quantity of spare parts, Support language: English, Spanish, Portuguese, Russian, German, French, Italian, Japanese, Korean, Dutch, Czech, Simplified Chinese, traditional Chinese.
●New man-machine interaction pattern
●Uitra-high-speed scanning & ctting with micro-connection
●Real-ime monitoring of core components
●Active reminder of machine maintenance
●Bult-in nesting software, save labor force
The high efficiency cooling: Collimating lens and focus lens group are cooling structure, increase cooling airflow nozzle at the same time, the effective protection of nozzle, the ceramic body, prolonged work time.
Chase the light aperture: Through the pore diameter of 35 mm, effectively reduce the stray light interference, ensuring cutting quality and service life.
Automatic focus: Automatic focus, reduce human intervention, focusing speed 10 m/min, repeat accuracy of 50 microns.
High speed cutting: 25 mm carbon steel sheet pre punch time < 3 s @ 3000 w, greatly improve cutting efficiency.
Tips: The consumable parts of the fiber laser cutting machine include: cutting nozzle (≥500h), protective lens (≥500h), focusing lens (≥5000h), collimator lens (≥5000h), ceramic body (≥10000h), you are buying the machine You can buy some consumable parts as an option.
The generator's using life (theoretical value) is 10,00000 hours. This means that if you use it for 8 hours a day, it can be used for about 33 years.

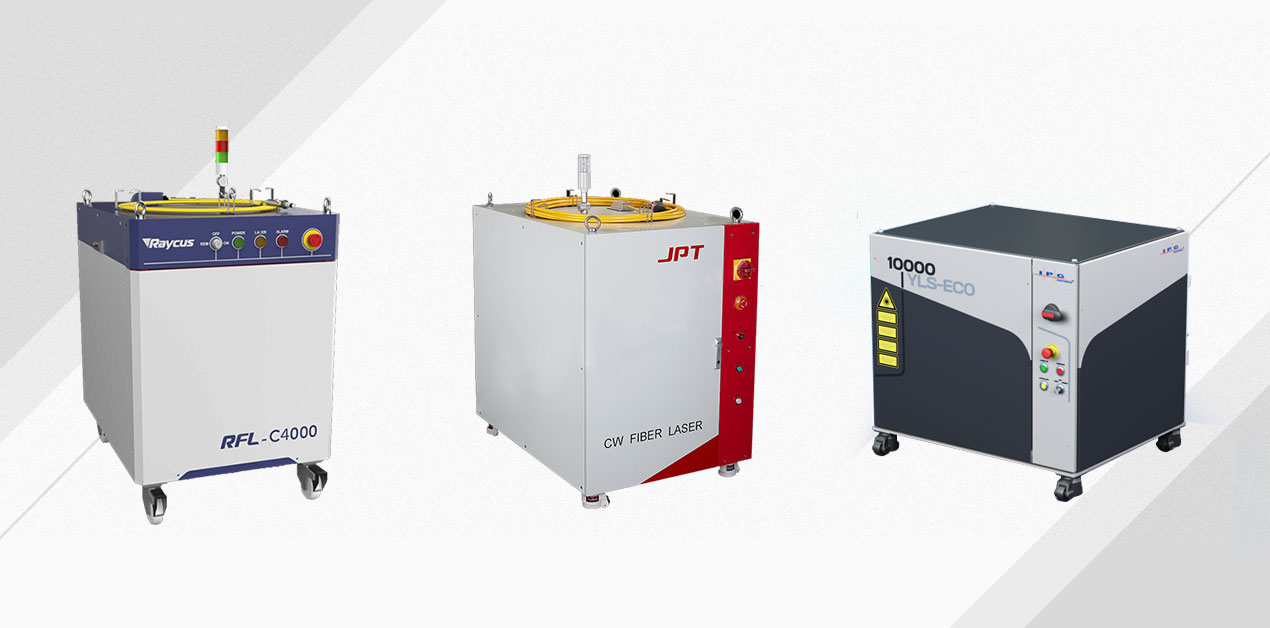

Generator Brand: JPT/Raycus/IPG/MAX/Nlight
Automatic pneumatic chuck, adjustable and stable, clamping range is wider and clamping force is larger. Non - destructive pipe clamping, fast automatic centering and clamping pipe, performance is more stable. The chuck size is smaller, rotation inertia is low, and dynamic performance is strong. Self-centering pneumatic chuck, gear transmission mode, higher transmission efficiency, long working life and high work reliability.
It employs intelligent tube support design, which can solve the deformation problems in the process of long tube cutting
It can detect anomalies in advance, reduce hidden dangers, and double the effect of abnormal detection of equipment
Stroke intelligent protection
Detect whole process of cutting head working, quickly feedback the risk and stop it. Double protection with fixed limit to improve equipment and personal safety and reduce risk
System is equipped with servo motor, boot to homework, do not need to return to zero operation, power outages, a key recovery cutting operation.
LXSHOW fiber laser cutting machine is equipped with German Atlanta rack, Japanese Yaskawa motor and Taiwan Hiwin Rails. The positioning accuracy of the machine tool can be 0.02mm and the cutting acceleration is 1.5G. The working life is up to more than 15 years.
Model Number: LX62TX
Lead time: 10-25 working days
Payment Term: T/T;Alibaba trade assurance;West Union;Payple;L/C
Machine Size: 12100*2200*2880mm
Machine Weight: 6100KG
Warranty: 3 years
Shipping: By sea/By land
|Power of Generator||1000-6000W|
|Repeated Positioning Accuracy||±0.02mm|
|Specified Voltage And Frequency||380V 50/60HZ|
Application materials: Mainly used for cutting Fiber laser metal cutting machine is suitable for cutting stainless steel, low carbon steel, carbon steel, alloy steel, spring steel, iron, galvanized pipe, aluminum, copper, brass, bronze, titanium and other metals.
Application industry: Applied in sheet metal processing, aviation, spaceflight, electronics, electrical appliances, subway parts, automobile, machinery, precision components, ships, metallurgical equipment, elevator, household appliances, gifts and crafts, tool processing, adornment, advertising, metal foreign processing various manufacturing processing industries.
